Description
Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 260-15096
Part Type: Master Cylinders
Product Line: Wilwood GS Compact Master Cylinders
Automotive Fittings Part Number: WIL-260-15096
UPC: 889545074376
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.625 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 3/8 in.-24
Master Cylinder Material: Aluminum
Master Cylinder Finish: Black
Bowl Design: Single
Mounting Hole Quantity: 2 holes

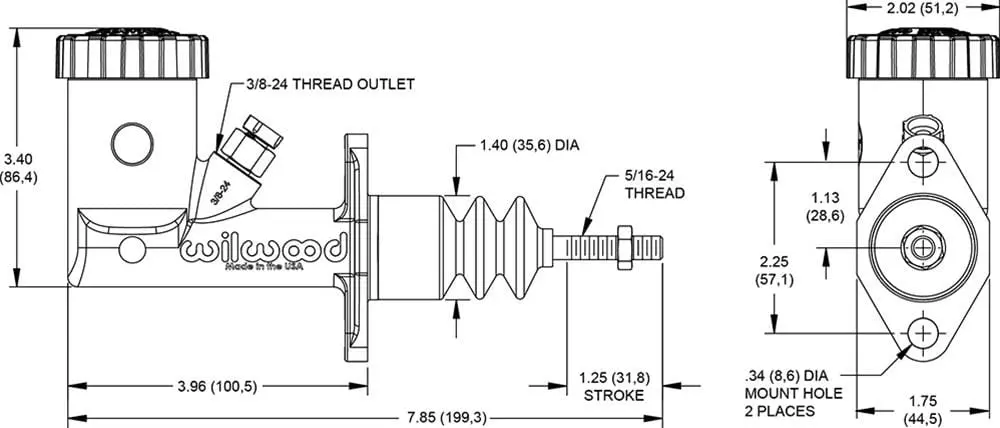

Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.250 in.
Remote Reservoir: No
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Black
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
Wilwood GS compact master cylinders have a re-buildable design featuring high-pressure die-cast aluminum bodies with protective E-coat finishes. These master cylinders are available with an integrated reservoir or with a 7/16 in.-20 threaded inlet for a remote reservoir. The internal components have a refined return spring and piston assemblies, assuring positive pressure control, along with a quick and complete release. Choose the bore size needed for your application.
