Remote Oil Pressure Sensor Mounting Kit for Volkswagen Bus and Vanagon

Description

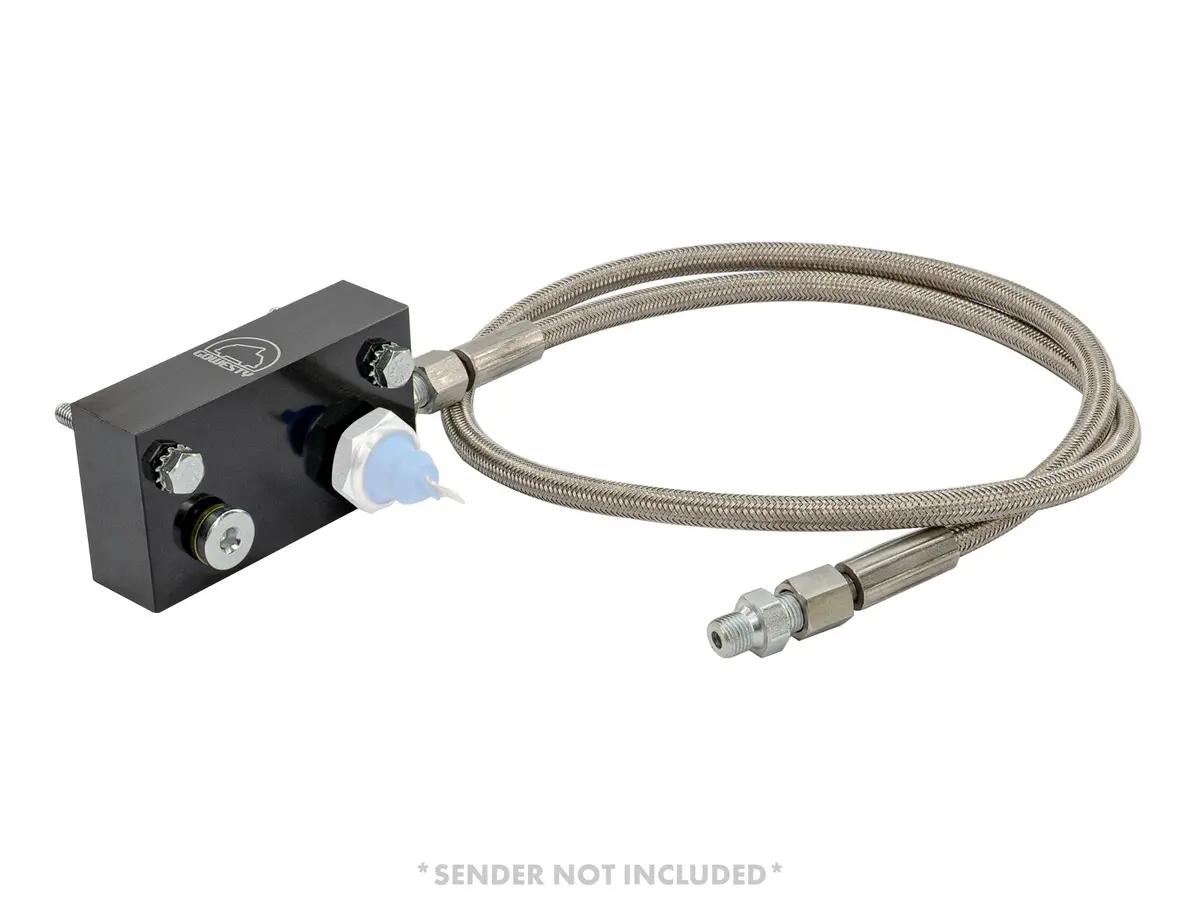

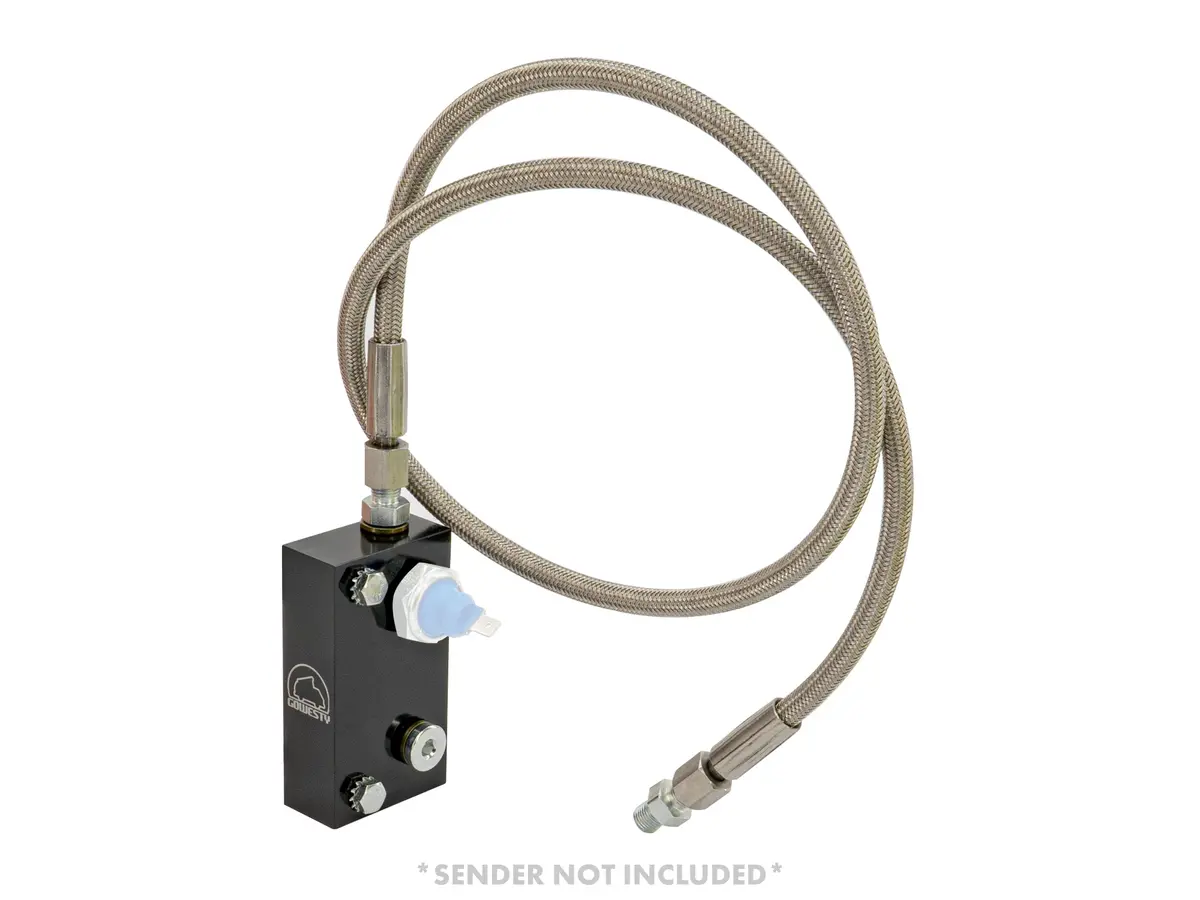

Oil Pressure Relocation Kit for VW Aircooled & Watercooled Flat-Four Engines

Fits: All 1968–79 Bus and 1980–91 Vanagon

Take the hassle out of oil pressure monitoring with this precision-engineered relocation kit. Designed for all air-cooled and water-cooled flat-four VW engines, this kit moves the factory oil pressure switch to a much more accessible location on the firewall—making routine maintenance quicker and easier.

The anodized aluminum manifold includes multiple ports, allowing you to:

• Relocate the factory oil pressure switch

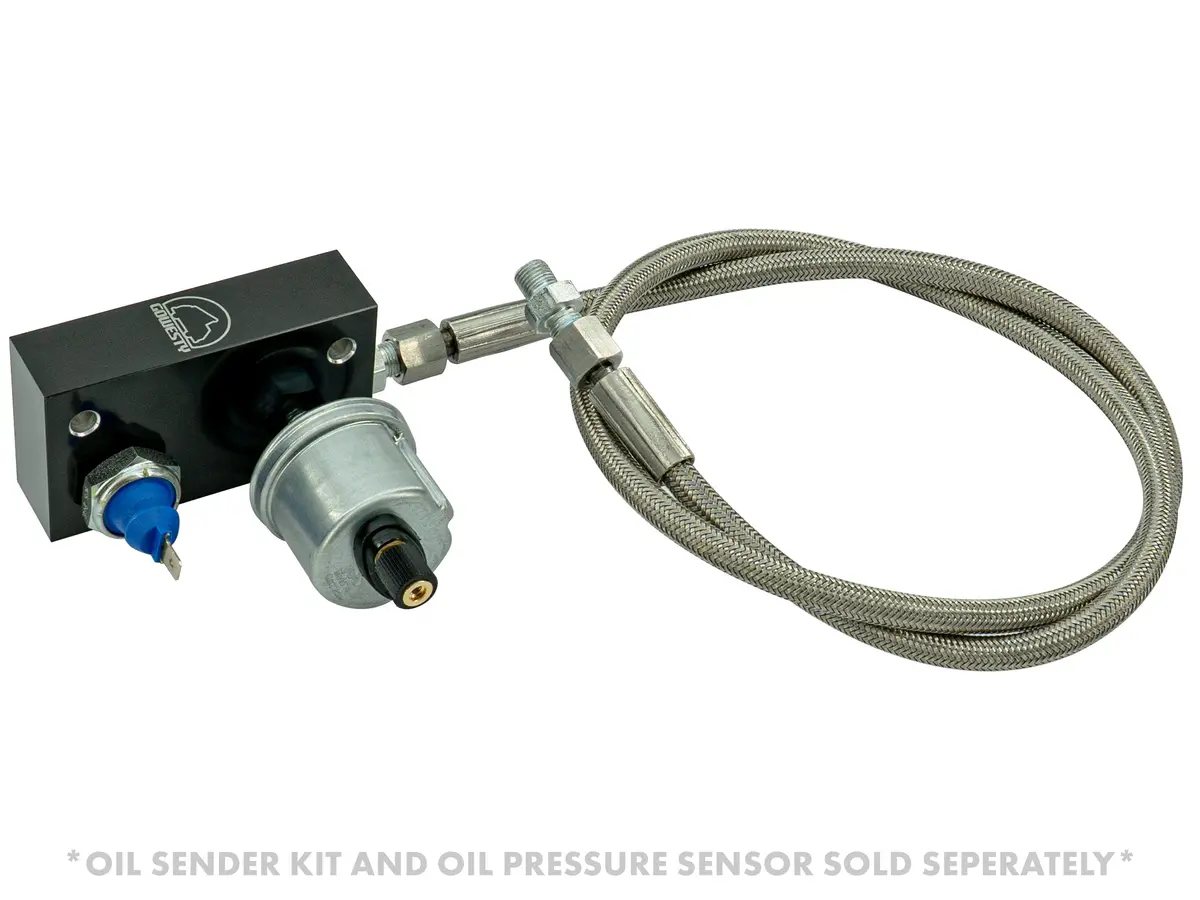

• Install an oil pressure sender (M10x1 thread compatible – VDO 036-001)
• Temporarily check oil pressure with a handheld gauge

When paired with our GW-EFI kit, you can connect an oil pressure sender directly to the ECU via the accessory input wire (light blue/red). Select “OP” on your ScanGauge and instantly view real-time oil pressure data, giving you valuable insight into your engine’s health.

Built for durability and performance, the included high-quality braided stainless steel hose provides excellent heat resistance, flexibility, and leak-free reliability.

Whether you’re upgrading for better diagnostics or making future maintenance easier, this relocation kit is a clean, smart solution that adds convenience and capability to your Vanagon.
Bundle options:
• Standard Kit

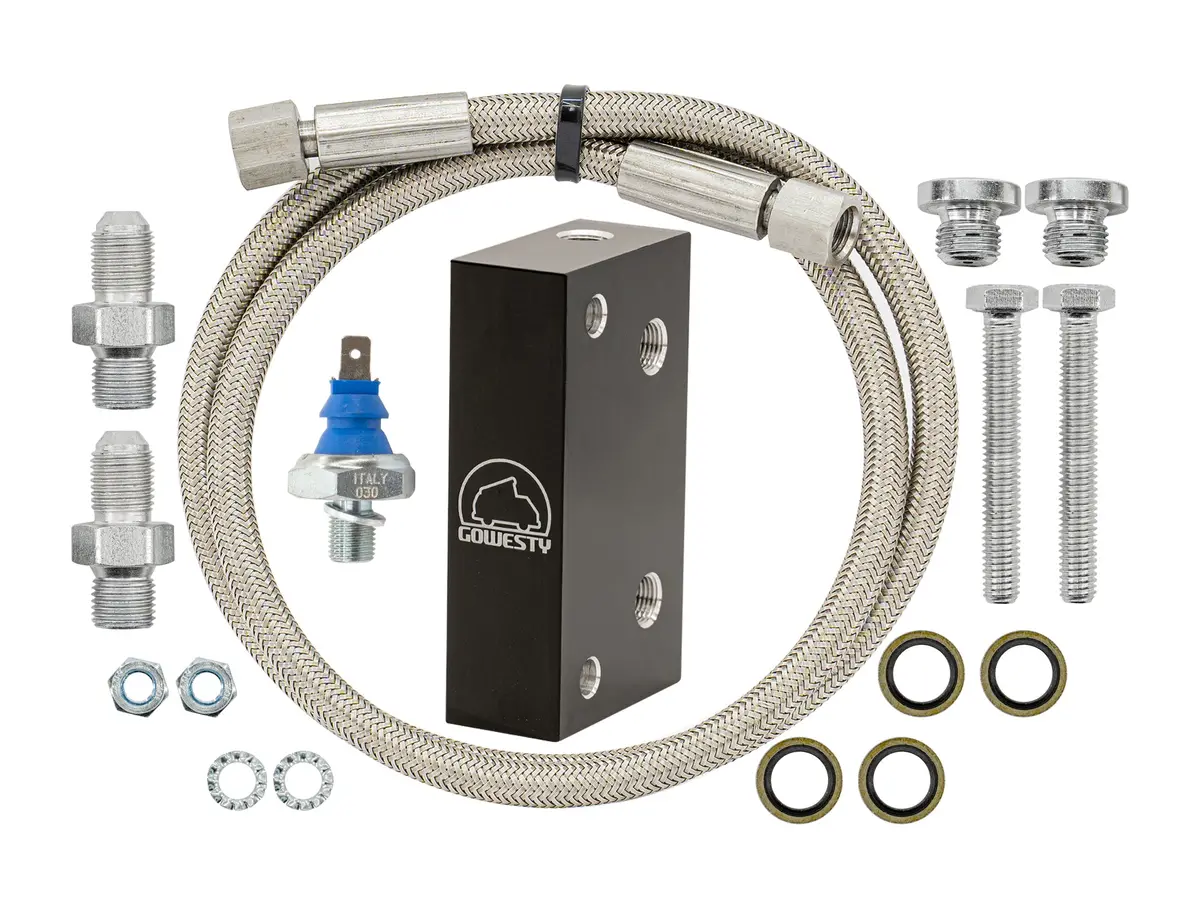

• Standard Kit w/Pressure Switch
• Standard Kit w/Pressure Switch and Aftermarket Sender

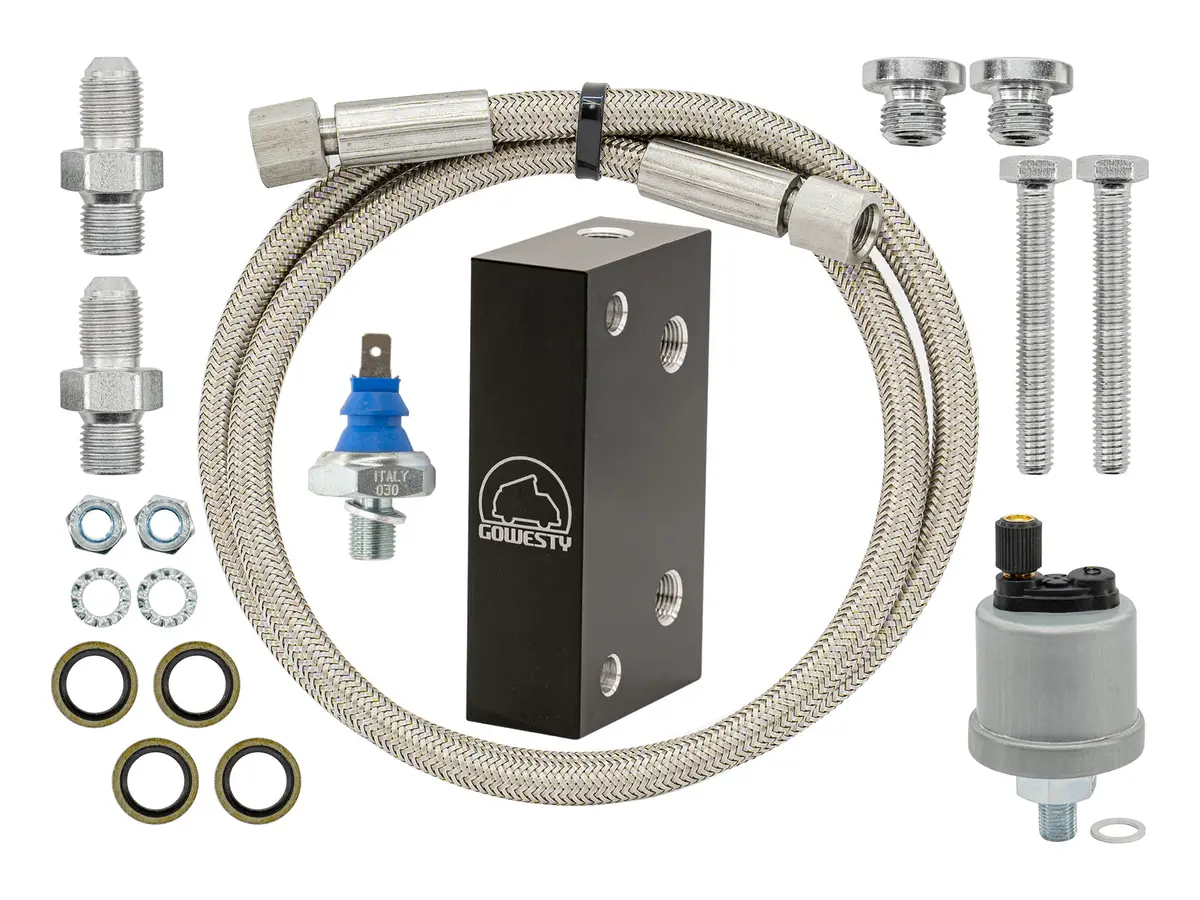

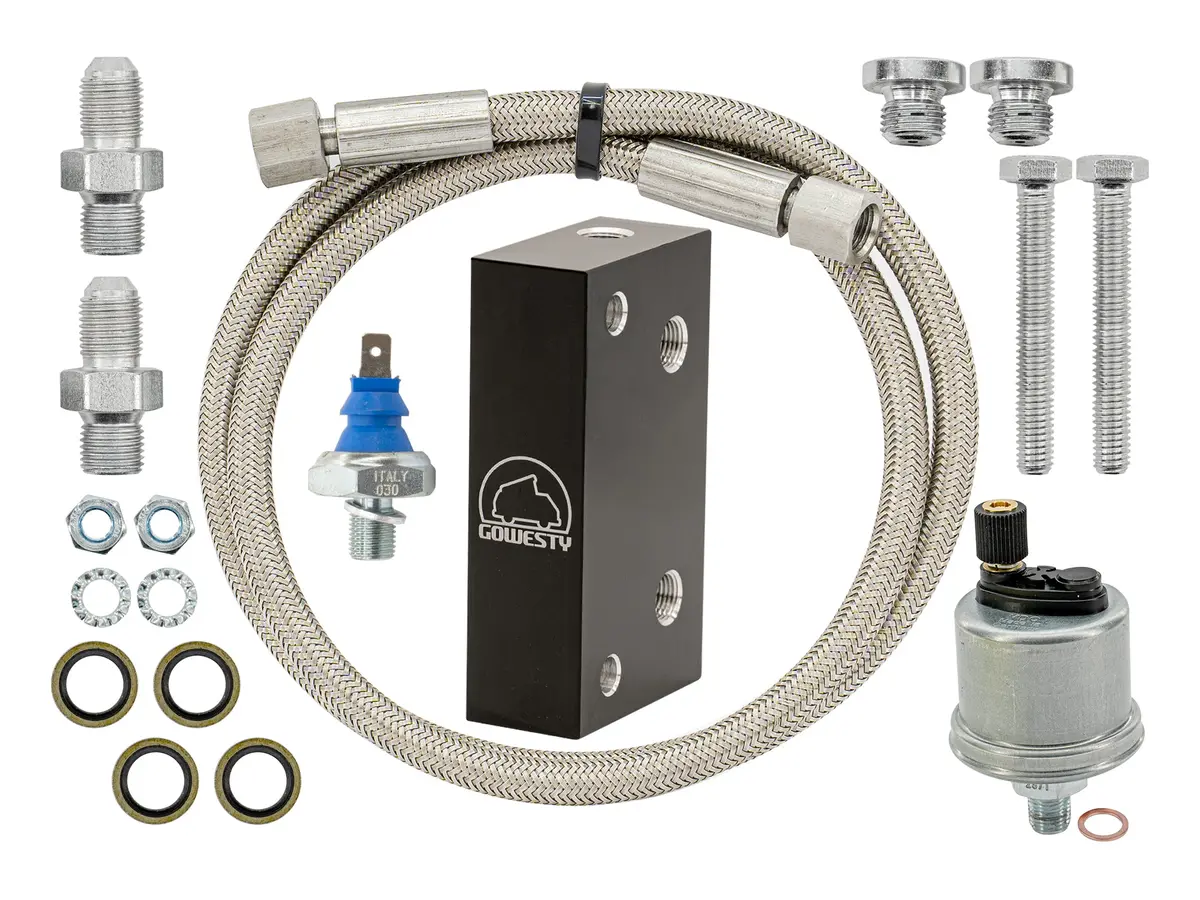

• Standard Kit w/Pressure Switch and Genuine VDO Sender

PDF INSTRUCTIONS

Remote Oil Pressure Manifold Instructions

Installation Tip

Do not apply Teflon tape or liquid sealant on the threads. The pressure unit requires metal to metal contact through these threads to establish a proper ground.

Pressure Unit Installation Torque: 22ft-lbs
