Digital Download: Driveshaft and Engine Underrun Bar Support Templates

Description

THIS PRODUCT IS A DIGITAL DOWNLOAD – NOT A PHYSICAL PRODUCT

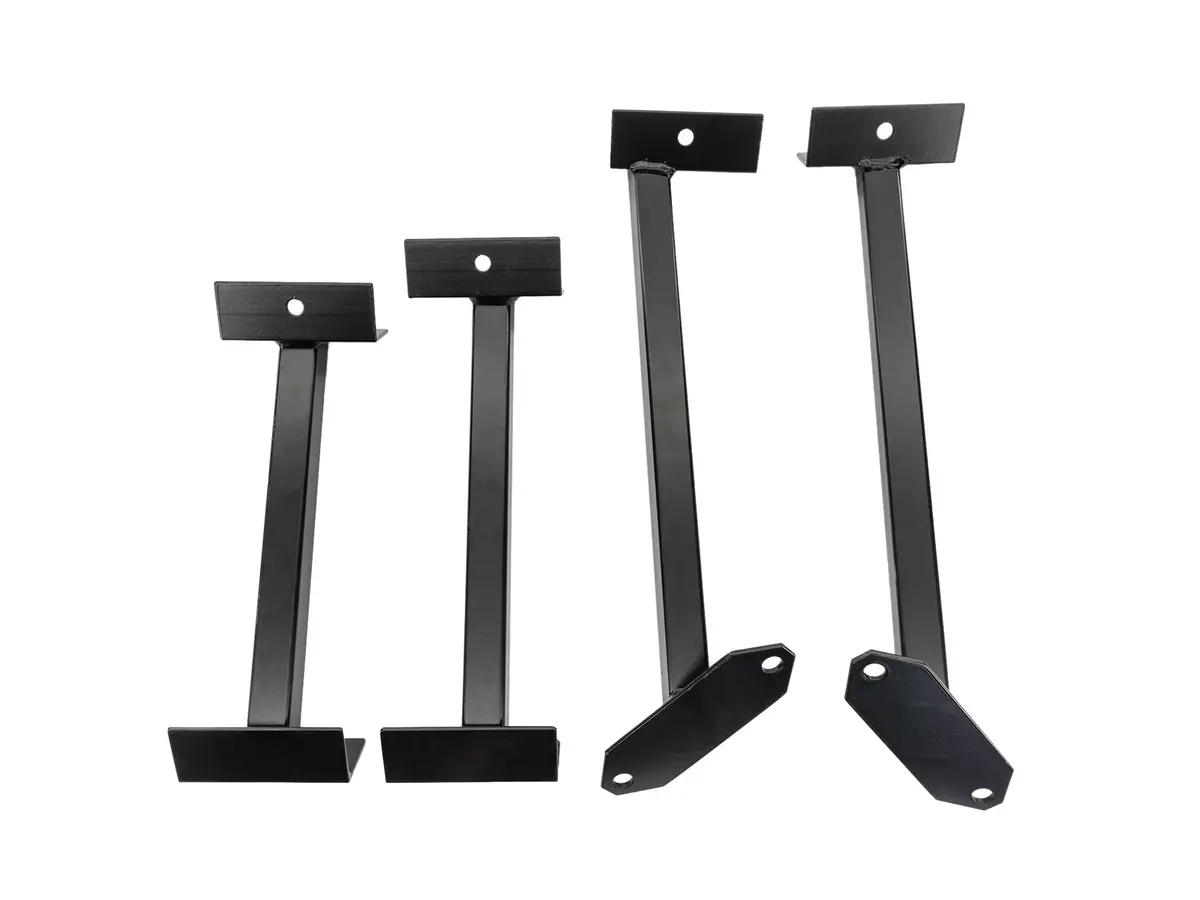

Originally designed for our NORRA race vans, these rugged underrun bar supports are now available as a digital download so you can build and install them yourself. Designed to work in tandem with the Center Skid Plate, they help reinforce your underrun bars to better protect your driveshaft during serious off-road use. These supports have been race-tested and trail-proven. Don’t hit the dirt without them!
Fits: All 1986-91 4WD Syncro models with original driveshaft and engine protection parts. Most effective when paired with a center skid plate.
Important installation note: To achieve the greatest amount of underrun bar support, this product must be installed in a location that interferes with numerous pipes, hoses, and wiring. These are bolt-on, no cutting or welding is required, but installation is not easy and is best performed by an experienced mechanic with plenty of tools and patience. The vehicle owner must be aware that this process is labor-intensive, and will require rearranging components along the frame rails, depending on vehicle specification and condition.
Forward the file to Send Cut Send for fabrication!

Installation Instructions

Driveshaft and Engine Underrun Support Installation Instructions
